Extrusion Line for Food Products
Factory-direct Sales, Customized Solutions for Your Products
Extrusion Line for Food Products
Our special designed KTE series screw extruder pelletizing line is widely used in Food Products.
※ HMMA (High Moisture Meat Analogue);
※ TVP (Textured Vegetable Protein);
※ Puffed Food, pet food etc;
※ Capacity: From 100Kg/h to 2000Kg/h;
We have extensive experience in these applications, can customize the extrusion line to your product, turnkey solution for you. You can start your business anytime with us.

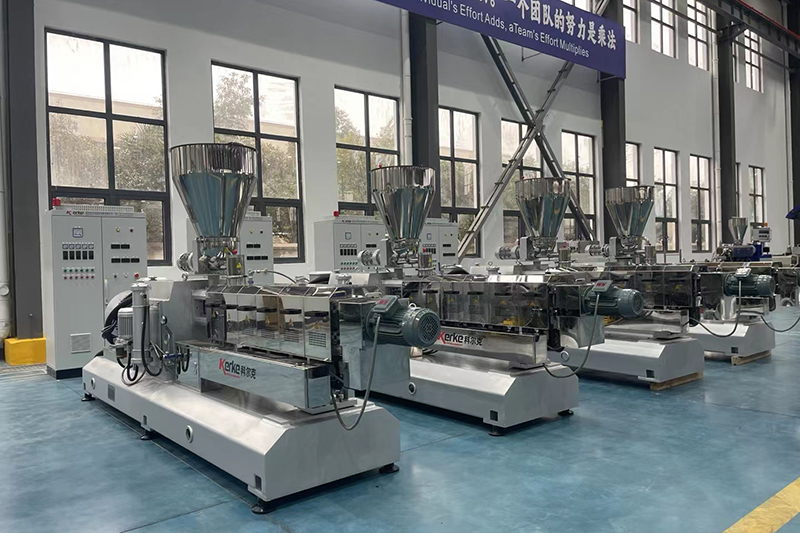

KTE series Food Products Extrusion Line
High Speed Mixer/Loss-in feeding system(Option) → Screw Loader → Feeder/Side Feeder → Extruder → Hydraulic Screen Changer and Granulating Mould → Melting pump(Option) → Cutting system → Product Silo → Electric Control Cabinet
Advantages of Our Food Products Extruder Machine
- The highest cost-effective extruder in China
- Free installation and training
- Easy Solution For Cleaning the Screw
- Easy Operation and More Stable
- 7×24 Hours High performance and good after-sale service
- Self-made spare parts, Fast Delivery (We Produce Screw Elements, Barrel by ourself)
Main Technical Parameters
| Model | Dia .mm | RPM | L/D | Motor kw | Output Capacity kg/hr |
| KTE36B/D | 35.6 | 300-800 | 32-60 | 18.5-37 | 20-100 |
| KTE50B/D | 50.5 | 300-800 | 32-60 | 55-90 | 80-300 |
| KTE52B/D | 51.4 | 300-800 | 32-60 | 55-110 | 100-400 |
| KTE65B/D | 62.4 | 300-800 | 32-60 | 75-160 | 300-600 |
| KTE75B/D | 71 | 300-800 | 32-60 | 132-315 | 500-1000 |
| KTE95B/D | 93 | 500-800 | 32-60 | 250-500 | 1000-2000 |
