Plastic Masterbatch Making Machine
Factory-direct Sales, Customized Solutions for Your Products
Plastic Masterbatch Extrusion Line
Our special designed KTE series screw extruder pelletizing line is widely used in various plastic masterbatches:
● Color masterbatch(PE/PP/PS/ABS/EVA/PET etc+Pigment)
● Filler masterbatch(PE/PP/PS/EVA Etc + Caco3/Tio2/BaSO4)
● Black masterbatch(PE/PP/PS/ABS、EVA/PET etc+Carbon black)
● Functional masterbatch(Flame retardant /Degradation/Foaming/Dry masterbatch etc)
We have extensive experience in these applications, can customize the extrusion line to your product, turnkey solution for you. There are standard masterbatch making machines in stock, you can start your business anytime from us.

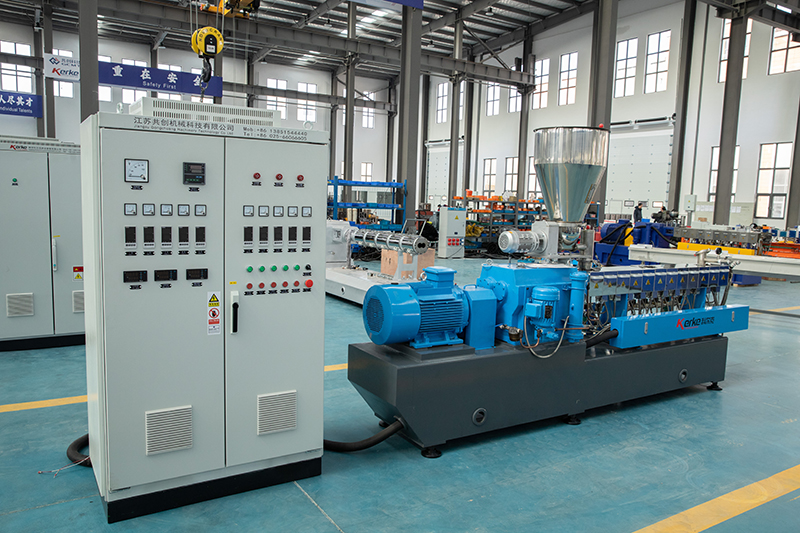

KTE series Twin Screw Extruder Pelletizing Line
The barrel and screw of our KTE series co-rotating parallel twin-screw extruder are designed and manufactured based on the building block principle. According to the requirements of the processing material system and process formula, the length diameter ratio barrel structure, screw arrangement, exhaust quantity and position, feeding mode, electrical control mode, etc. Can be optimized and reasonably configured. Realize multi-function and multi-purpose to adapt to the processing of plastic masterbatch products.
We have more than 20000 square meters of modern production and installation base, equipped with various high-precision parts NC production workshops, intelligent assembly workshops and advanced experimental R & D centers. It has formed a comprehensive digital chemical plant integrating design, processing and manufacturing, smart control and application.
Advantages of Our Platic Masterbatch Making Machine
- Good Dispersion and Compounding
- Easy Solution For Cleaning the Screw
- Uniform and Beautiful End Pellet
- Easy Operation and More Stable
Main Technical Parameters
| Model | Dia .mm | RPM | L/D | Motor kw | Output Capacity kg/hr |
| KTE20 | 21 | 500 | 32-60 | 5 | 2-10 |
| KTE25D | 26 | 500 | 32-60 | 7.5-11 | 5-20 |
| KTE36B/D | 35.6 | 300-800 | 32-60 | 18.5-37 | 20-100 |
| KTE50B/D | 50.5 | 300-800 | 32-60 | 55-90 | 80-300 |
| KTE52B/D | 51.4 | 300-800 | 32-60 | 55-110 | 100-400 |
| KTE65B/D | 62.4 | 300-800 | 32-60 | 75-160 | 300-600 |
| KTE75B/D | 71 | 300-800 | 32-60 | 132-315 | 500-1000 |
| KTE95B/D | 93 | 500-800 | 32-60 | 250-500 | 1000-2000 |
| KTE135B/D | 135 | 500-800 | 32-60 | 500-900 | 2000-4000 |
There are several different cutting types for different application.
According to your raw materials, We can customize the best solution for your business.
Water-cooling strands pelletizing system is the most commonly used and economical method for most polymer compounding.
Air-cooling Strands Pelletizing System is mainly used for materials(starch degradation etc) that are likely to absorb water, or are not easily dewatered or dried.
Underwater Pelletizing System is mainly used for most of polymers. Especially for TPU and EVA etc or similar elastomer. increases the product capacity and makes the final granules good shape.
Water Ring Hot-face Pelletizing System has a shorter residence time in the water, and no additional drying is required. It’s mainly used for high filling masterbatch, White/black color masterbatch etc.
Air Cooling Die Face Pelletizing System is mainly used for PVC WPC and PE High filling masterbatch etc. Absorb touching the water, don’t need too much space and easy to operate.
Water Flow Strand Pelletizing System is mainly use for PET etc.
