Lab Twin Screw Extruder
Factory-direct Sales, Customized Solutions for Your Products
Twin Screw Extruder Lab Machine
KTE series laboratory twin screw extruder is suitable for formula development, mixing, extrusion, and granulation experiments of a small batch of preliminary samples. It can be widely used in the processing of polymer materials such as color masterbatch, engineering plastics, functional masterbatch, elastomer, degradation masterbatch and other blending modification fields.
※ Model: KTE16/KTE20/KTE25/KTE 36;
※ Capacity: From 1Kg/h to 100Kg/h;
※PLC control, easy operation;
※Low noise and little space request;
※Suitable for most materials;
※Turn-key solution for you.

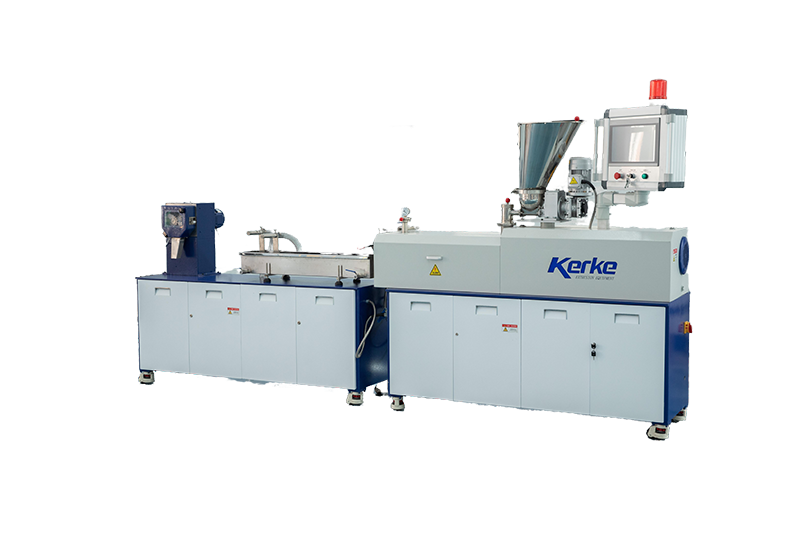

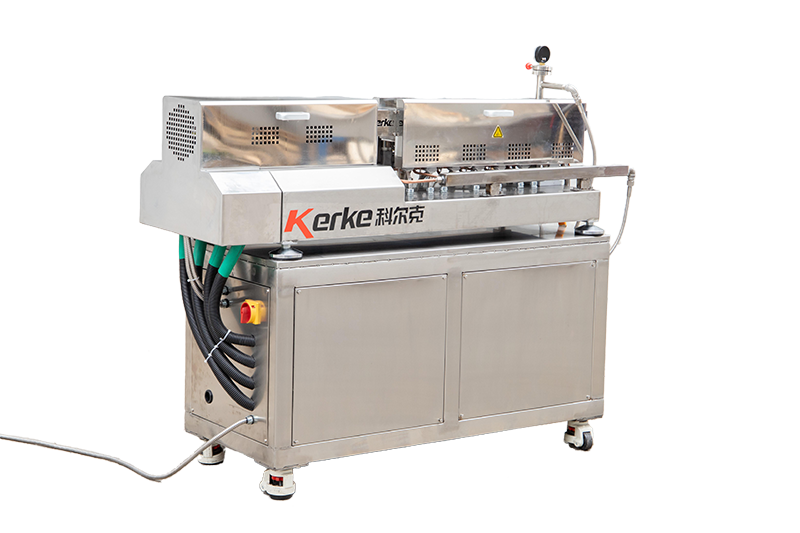

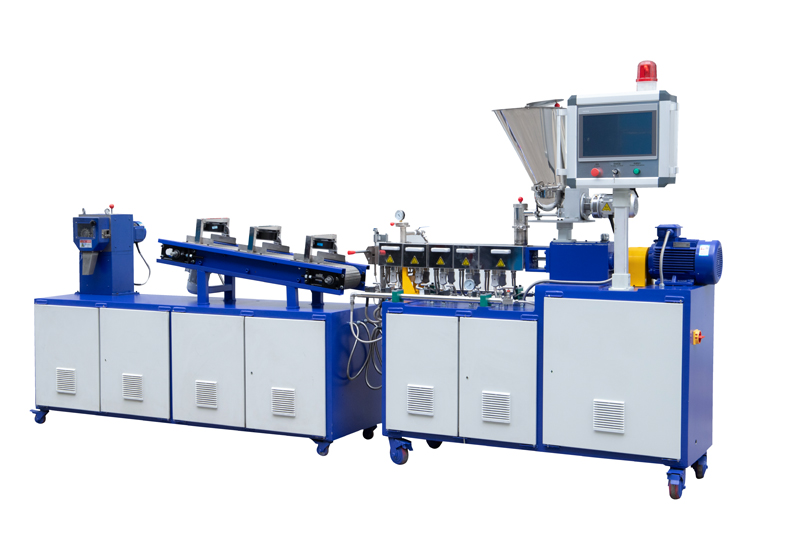

KTE series Twin Screw Extruder Lab Machine
Our KTE Series Laboratory Twin Screw Extruder is Suitable for Formula Development, Mixing, Extrusion and Granulation Experiments of Small Batch of Preliminary Samples, and Can Be Widely Used in the Processing of Polymer Materials Such As Color Masterbatch, Engineering Plastics, Functional Masterbatch, Elastomer, Degradation Masterbatch and Other Blending Modification Fields. Scientific Research Institutes, Laboratories of Major Universities and R&D Centers of Enterprises and Institutions. Its Characteristics Are As Follows:
KTE Series Laboratory Twin Screw Extruder is Widely Used in the Processing of Polymer Materials Such As Color Masterbatch, Engineering Plastics, Functional Masterbatch, Elastomer, Degradation Masterbatch and Other Blending Modification Fields.
Advantages of Our Lab Twin Scew Extruder
1) Movable Base, Integrated Design, Compact Appearance and Complete Functions;
2) Plug and Play Design, Easy to Install and Debug;
3) Touch Control System is Adopted, Which is Easy to Operate;
4) It Can Adjust the Required Combination Form According to the Needs of Processing Tasks, and Flexibly Deal with Different Formulas;
5) the Process Parameters Are Stable and Reliable, and Can Be Copied to Mass Industrial Production.
Main Technical Parameters
Model | Dia .mm | RPM | L/D | Motor kw | Output Capacity kg/hr |
KTE16 | 15.6 | 500 | 32-60 | 2.2 | 1-5 |
KTE20 | 21 | 500 | 32-60 | 5 | 2-10 |
KTE25D | 26 | 500 | 32-60 | 7.5-11 | 5-20 |
KTE36B/D | 35.6 | 300-800 | 32-60 | 18.5-37 | 20-100 |

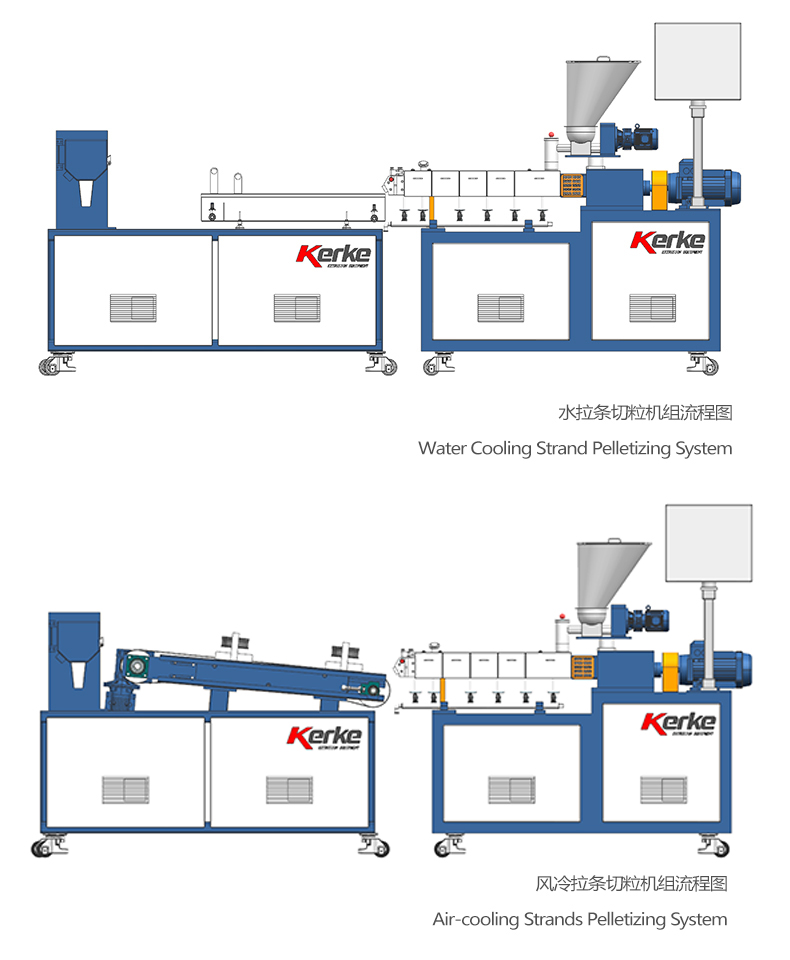

There are several different cutting types for different application.
According to your raw materials, We can customize the best solution for your business.
